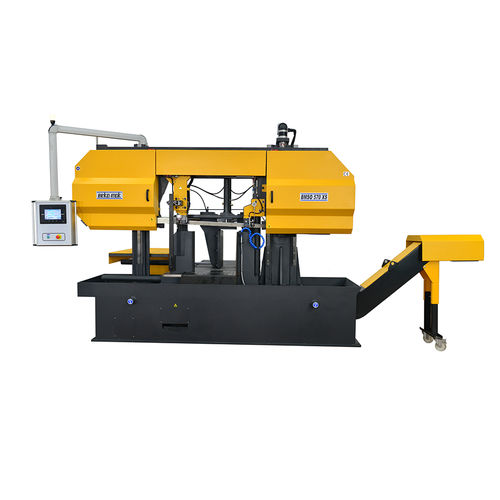

Band saw BMSO-570XS CNC

horizontalfor steelfor aluminum

The new BMSO 570XS is designed to maximize our customers' production of heavy metal, profile and pipe cuts in high-volume units with a fully automatic servo feeding and cutting system. Automatic controls and sensors maximazes performans/cost ratio and extends lifetime of blade up to 50% longer. CHARACTERISTICS - Smart cut and user friendly touch screen with Omron CNC cutting program. - Ability to save up to 50 different cutting lenght steps in 100 different programs. -Cutting parameters are CNC controlled for an optimal processing of workpiece. -Manual cutting parameters input. -Servo feeding with 700mm stroke. -Guide arm travels on linear guide way and moves in coordination with the moveable vise jaw. -Hydrulic actuated carbide blade guides. -Idle Wheel motion detector and automatic deflection sensor. -Vibration free cutting with 3 linear way. -Motorized swarf brush. -Planatery Gearbox. OPTIONALS -Hydraulic top clamping. -Microspray cooling system. -Hexagonal vices for bundle tube cutting. -15 kW motor Optional Features Tilt Adjustment Lever Hydraulic Top Clamping Microspray Device 15 Kw Main Motor
