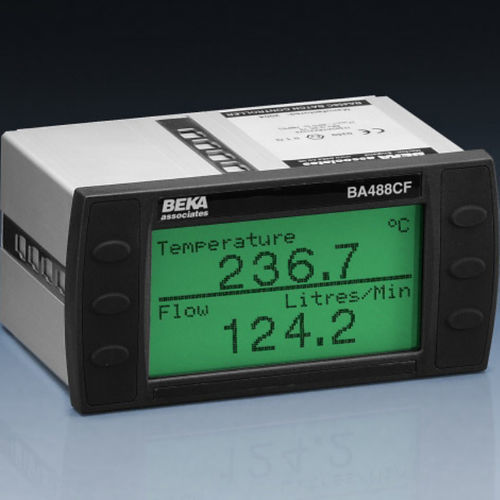

Numeric display BA488CF-P

bar graph128 x 64industrial

-Intrinsic safety certification -FISCO compliant -High contrast 86.5mm x 45mm display with backlight -Up to 8 fieldbus variables -PROFIBUS PA protocol -Bus powered -Six optional alarm outputs -Push buttons may be used to send operator commands to the fieldbus host. Product details This BA488CF-P PROFIBUS PA display instrument can display up to eight fieldbus process variables on a 86.5mm x 45mm screen. Up to eight fieldbus variables may be displayed at the same time on one of eleven standard display screen formats, together with units of measurement and tag information. The operator can select the displayed screen via the front panel push-buttons, or these buttons may be disabled. The fieldbus display push buttons may also be used for returning operator commands to the fieldbus host. If large industrial push buttons are required for operator inputs, external push buttons or switches may be connected to the instrument. The fieldbus display can be supplied with six isolated alarm outputs, each of which may be linked to any of the displayed fieldbus variables. Configuration and alarm setpoints are entered via the front panel push-buttons which may be protected by a security code.
