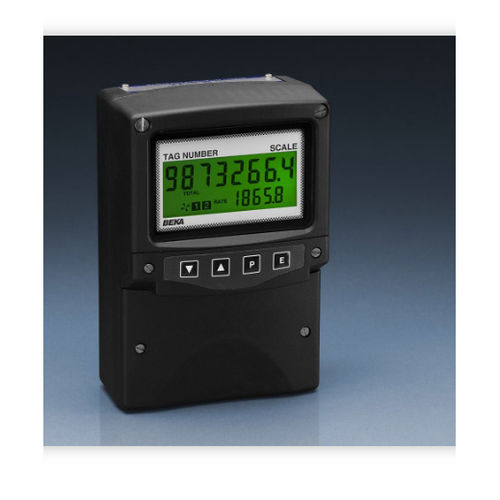

Digital totalizer counter BA554E

electronicIP66stainless steel

-Large easy to read displays: 5 digit 12mm high 8 digit 18mm high -IP66 GRP enclosure, separate terminal compartment -Operating temperature -40°C to +70°C Display functions -20°C to +70°C -Internal calibrator -Root extractor and lineariser -Optional: External keypad Backlight - may be loop or separately powered Alarms Escutcheon scale and tag labelling Etched Stainless Steel legend plate Product details This third generation, general purpose BA554E 4/20mA loop powered Rate Totaliser has large high contrast rate and total displays with an extended operating temperature range. It can display flow rate per second, minute or hour and total flow in the same or different units. Adjustable linearisation or square root extraction are selectable and the instrument can display and totalise bi-directional flows. No additional charge is made for factory calibration or for escutcheon scale and tag marking, however the Rate Totaliser can easily be recalibrated on-site. Coated printed circuit boards plus extensive thermal and vibration testing provides maximum reliability supported by a three year guarantee.
