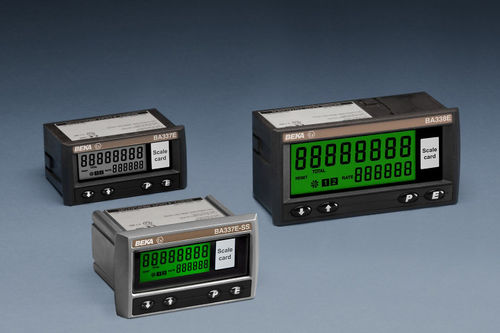

Pulse totalizer counter BA3 E series

digitalelectronicintrinsically safe

-Intrinsic safety certification -Proximity detector, magnetic pick-off, voltage pulse, or switch contact input. -Separate rate and total displays -Lineariser -Two input model -Rugged Stainless Steel model for use in Ex e, Ex n, Ex p and in Ex t panel enclosures in Zones 1, 2, 21 & 22. -BA338E has isolated synchronous pulse output as standard -Optional: Internally powered display backlight Isolated Alarms Isolated 4/20mA output BA337E and BA337E-SS isolated synchronous pulse output Product details These easy to use, intrinsically safe rate totalisers can process and simultaneously display rate of flow and total flow from the pulse output of most flowmeters. International certification allows worldwide installation and a 16 segment lineariser ensures maximum accuracy. Accessories, include a display backlight, isolated dual alarms, isolated 4/20mA output for BA337E and BA337E-SS and isolated synchronous pulse output. Rate totalisers can be supplied configured and fitted with a customer specified printed scale card showing the units of measurement for no additional charge. Specified tag or application information can also be printed onto the rear of the instrument.
