Characteristics
- Measured value
- process, current
- Display
- digital
- Type
- panel
- Other characteristics
- 4-20 mA, loop-powered
Description
-Loop powered
-Front panel push buttons
-5 digit 11mm high + bargraph
-Noryl or rugged 316 stainless steel enclosure, both provide IP66 front of panel protection.
*-40 to +70°C operation
-Optional:
Backlight - may be loop or separately powered
BA490 Rotary encoder
Product details

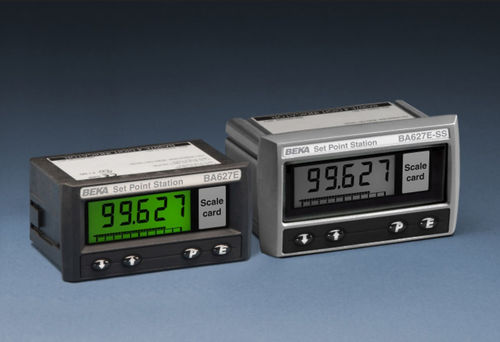

The BA627E is a general purpose panel mounting set point station [set point generator] which enables the current in a 4/20mA loop to be manually adjusted from within a process area. The set point station incorporates a 5 digit display plus a bargraph which can be calibrated to show the 4/20mA current in engineering units. Adjustment is via the front panel push buttons.
