Analog output module BA35014 analog outputssafetyplug-in
Add to favorites
Compare this product
Characteristics
- Signal type
- analog
- Number of inputs/outputs
- 4 analog outputs
- Type
- safety
- Mounting
- plug-in, panel
- Other characteristics
- intrinsically safe
Description
-Four 4/20mA unpowered outputs
-Each output is galvanically isolated
-Ex ia intrinsic safety certification
-Certification allows module to be plugged into a Pageant BA3101 Ex ia intrinsically safe Operator Display
Product details

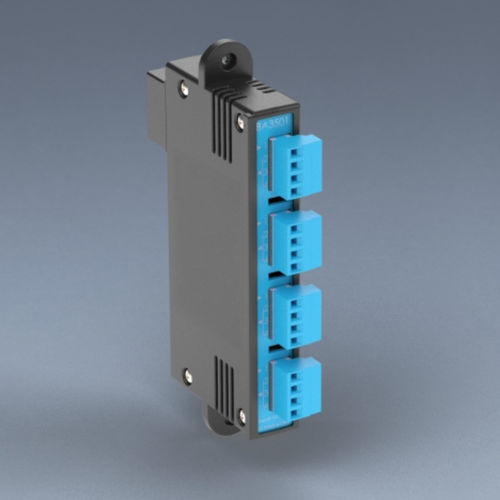

The Pageant BA3501 module has four individually isolated unpowered 4/20mA passive outputs. Separate apparatus certification for the module allows it to be safely plugged into any one of the seven slots on a Pageant BA3101 operator display without the need for additional certification or approval.
If requirements change, a BA3501 module may be fitted on-site to an Operator Panel which has already been installed and commissioned.
