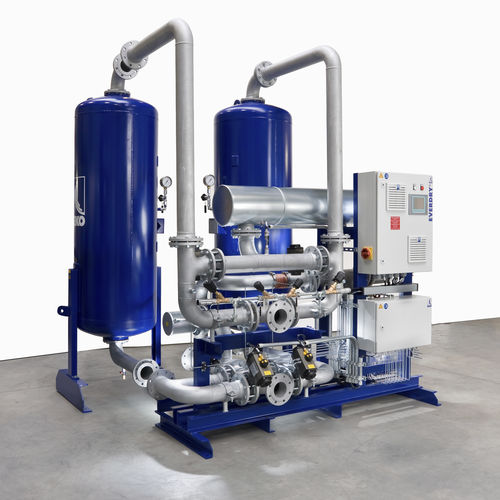

Desiccant compressed air dryer EVERDRY®
high-qualityhigh-performancehigh-capacity

Desiccant compressed air dryer - EVERDRY® - BEKO TECHNOLOGIES GmbH - high-quality / high-performance / high-capacity
Desiccant compressed air dryer - EVERDRY® - BEKO TECHNOLOGIES GmbH - high-quality / high-performance / high-capacity
Desiccant compressed air dryer - EVERDRY® - BEKO TECHNOLOGIES GmbH - high-quality / high-performance / high-capacity - image - 2
Add to favorites
Compare this product


Characteristics

Technology
desiccant
Other characteristics
high-quality, high-performance, high-capacity
Capacity

Max.: 20,000 m³/h
(706,293.33 ft³/h)

Min.: 580 m³/h
(20,482.51 ft³/h)

Working pressure

Max.: 10 bar
(145.04 psi)

Min.: 4 bar
(58.02 psi)

7 bar
(101.53 psi)

Operating temperature

Max.: 43 °C
(109.4 °F)

Min.: 5 °C
(41 °F)

35 °C
(95 °F)

Ambient temperature

Max.: 40 °C
(104 °F)

Min.: 5 °C
(41 °F)

Weight

Max.: 24,500 kg
(54,013.3 lb)

Min.: 1,100 kg
(2,425.1 lb)

Dew point

Max.: -40 °C
(-40 °F)

Min.: -70 °C
(-94 °F)

Description

As a heat-regenerating adsorption dryer for compressed air, the EVERDRY series offers standardized system concepts with a wide range of variation options. Complex compressed air drying tasks with high flow rates are solved particularly economically, customer-specific requirements are met by individual solutions. The optimal, solution-oriented technology determines the concept. BEKO TECHNOLOGIES develops and plans complete concepts tailored to the customer's needs. Thanks to the modular design, the adsorber vessel and the pipe module can be separated and reassembled in a few simple steps. Thanks to this design, even the largest systems can be packed into standard shipping containers. This significantly reduces transport and packaging costs and provides the plant with optimum protection even on long sea voyages. Maintenance and servicing is also particularly convenient thanks to the modular design: all components are easily accessible, which significantly reduces maintenance time and costs. In addition to this high-quality product, Beko Technologies offers comprehensive service and competent project management, from consulting and planning to installation and maintenance, from standard solutions to application-specific special developments.
