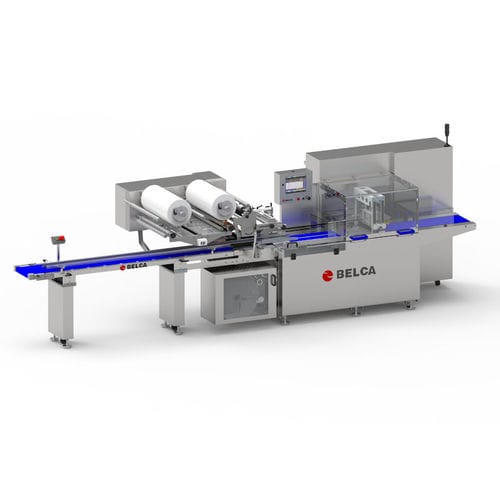

Horizontal bagging machine HPS4 INOX

flow-packfor the food industry

The HPS4 INOX is a high-end automatic Flow Pack wrapper, built to wrap a wide range of products automatically with certain heat-sealing materials. The machine is used for wrapping solid products individually, which, within the dimensions specified in the technical sheet, is necessary to protect them in a certain way from external agents. Mechanical construction is robust and the operation versatile as it has electronic control of the different movements of the machine. HPS4 INOX can work interchangeably with BOPP polypropylene, polyolefin or virtually any heat-sealable material or pressure. Can also work in vacuum with appropriate film and a vacuum unit subsequent inline. EXTERIOR • Machine built in AISI 304 stainless steel. • Mechanical and electronic elements of the machine at the rear inside easily accessible cabinets and removable doors. • Easy-access control panel. • Parts in contact with the product, in stainless steel. INPUT • Input driven by independent servomotor. • Removable conveyor belt (fabric). • Input conveyor with 2.500mm with 1.500mm loading area. • Input for manual feeding through antimicrobial band and guides adaptable to the product. • Product detection by photocells. REEL HOLDER • Motorized reel holder with film tension control by three-phase motor and rocker that guarantees constant film tension from the beginning to the end of the reel and adjustable from the screen. • Double reel holder. • Print registration system. FORMING BOX • Variable in width depending on the product. Minimum width 40mm, maximum 250mm. • Angularly variable depending on the product ± 10º
