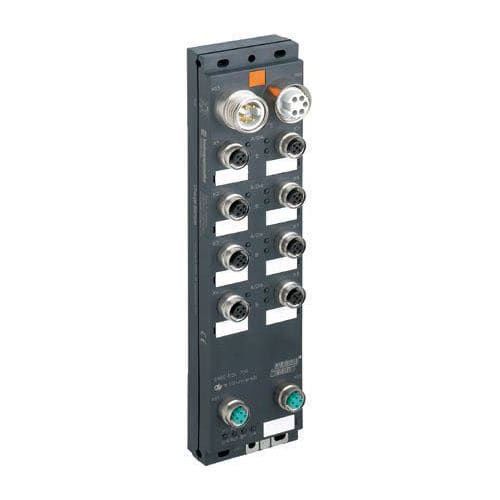

Digital I/O module 0980 ESL 700

ProfiNet16-I/OIP67

Order No. :109628 Type :0980 ESL 700 Description :PROFINET IO device with 16 digital I/O channels, channels can be used universally as inputs or outputs, M12 sockets, M12 LAN-Ports, D-coded, 7/8" power supply Availability :available NoteThe application of these products in harsh environments should always be checked before use. Spécifications subject to alteration. Color of housingblack Product characteristicsVibration resistence, Oil résistance Classification Belden classI/O Modules with Digital Inputs and Outputs (DIO) universal Belden brandLumberg-Automation Mechanical data Weight380g Dimensions (W x H x D)60 mm x 243 mm x 39.5 mm Environmental conditions Environmental température-10 °C... 60°C Degree of protection (IP), mountedIP67 Materials Housing material / Molded bodyPBT Approvals RoHS 2002/95/EG compilantyes Bus System Fieldbus SystemPROFINETI0 Bus ConnectionM12, Dcoded Number of contacts4 Transmission rate10/100 Mbps Transmission method100BASE-TX System power supply Nominal voltage (System power supply)24 V DC Voltage range DC (System power supply)19V... 30V Power consumption (System power supply)typ. 100 mA Reverse polarity protection (System power supply)Yes Operating Indication (System power supply)LED green Connection (System power supply)7/8", 5-pole
