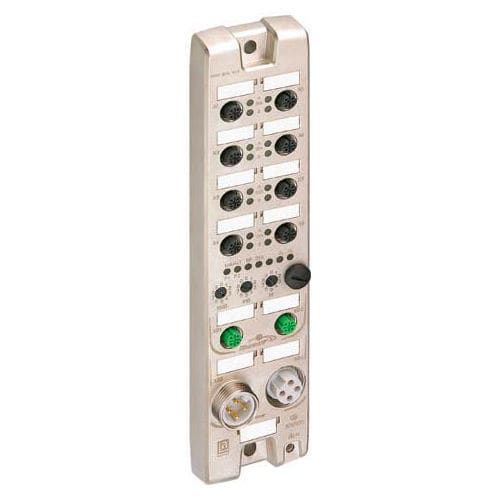

Digital I/O module 0980 ESL 813-EIP

EtherNet/IP16-I/Onetwork

Order No. :934 691-003 Type :0980 ESL 813-EIP 8DI/8DO-M12-R Description :EtherNet/IP™ device with 8 digital input channels and 8 digital output channels with galvanic isolation, Zinc diecast housing, M12 sockets for network ports and I/O slots, Rotary switch for setting the network parameters, M12 D- coded 4 pole LAN-Ports, 7/8" power supply, 4 poles Availability :available NoteThe application of these products in harsh environments should always be checked before use. Spécifications subject to alteration. Color of housingmetallic Product characteristicsVibration résistance, Oil résistance, Résistance to flying welding sparks, Electromagnetic résistance Classification Belden classI/O Modules with Digital Inputs and Outputs (DI/DO) Belden brandLumberg-Automation Mechanical data Weight605 g Dimensions (W x H x D)59.6 mm x 261.4 mm x 17.6 mm Environmental conditions Environmental température-10 °C... 60°C Degree of protection (IP), mountedIP67 Materials Housing material / Molded bodyZinc diecasting. nickel-plated Approvals ApprovalsUL, CSA RoHS 2002/95/EG compilantyes Bus System Fieldbus SystemEthemet/IP™ Bus ConnectionM12, Dcoded Number of contacts4 Transmission rate10/100 Mbps Address range0 dec.... 255 dec. Rotary address switches0 dec.... 255 dec. Default addressOdec.
