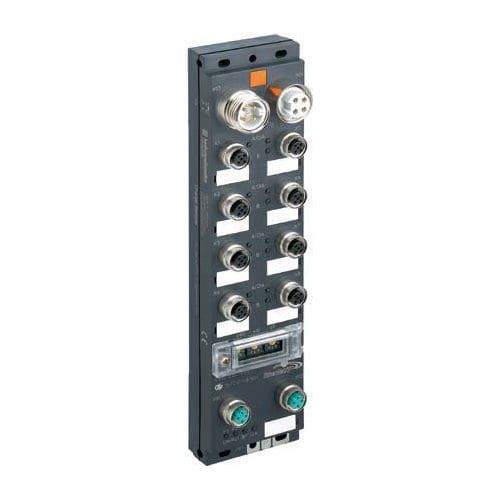

Digital I/O module 0980 ESL 710

EtherNet/IP16-I/OIP67

Order No.:109627 Type:0980 ESL 710 Description:EtherNet/IP™ Device with 16 digital I/O channels, channels can be used universally as inputs or outputs, M12 socket, rotary address switches for addressing, M12 LAN-Ports, D-coded, 7/8" power supply Availability:available NoteThe application of these products in harsh environments should always be checked before use. Spécifications subject to alteration. Color of housingblack Product characteristicsVibration resistence. Oil résistance Classification Belden classI/O Modules with Digital Inputs and Outputs (DIO) universal Belden brandLumberg-Automation Mechanical data Weight390 g Dimensions (W x H x D)60 mm x 243 mm x 39.5 mm Environmental conditions Environmental température•10 °C... 60 °C Degree of protection (IP), mountedIP67 Materials Housing material / Molded bodyPBT Approvals ROHS2002/95/EG compilantyes Bus System Fieldbus SystemEtbemet/lP™ Bus ConnectionMl 2. Dcoded Number of contacts4 Transmission rate10/100 Mbps Transmission method100BASE-TX Address range0 dec.... 255 dec. Rotary address switches0 dec.... 255 dec. Default addressOdec. System power supply Nominal voltage (System power supply)24 V DC Voltage range DC (System power supply)19 V... 30 V Power consumption (System power supply)typ. 95 mA Reverse polarity protection (System power supply)Yes Operating Indication (System power supply)LED green Connection (System power supply)7/8*. 4-pole
