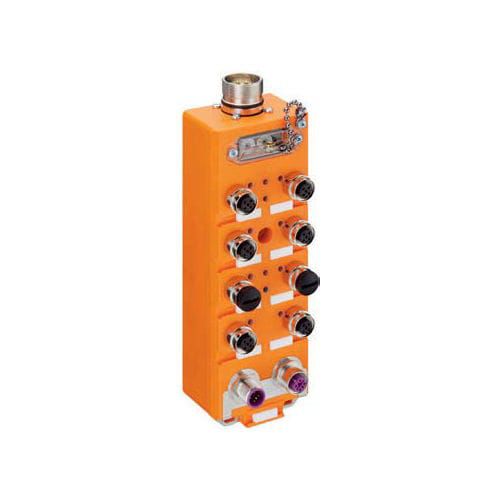

Digital I/O module 0970 PSL 114

PROFIBUS-DP8 digital inputsfor sensors

Order No.:28335 Type:0970 PSL 114 Description:Profibus-DP device with 8 digital inputs to connect standard sensors, combined FIXCON/M12 socket, rotary switches for addressing, M12 bus connection, M23 power supply. Availability:available NoteThe application of these products in harsh environments should always be checked before use. Color of housingorange Product characteristicsOil résistance. EMV résistance. Vibration résistance Classification Belden classI/O Modules with Digital Inputs (DI) Belden brandLumberg-Automation Mechanical data Weight535 g Dimensions (W x H x D)60 mm x 179 mm x 51.3 mm Environmental conditions Environmental températureo°c ...60*0 Degree of protection (IP), mountedIP67 Materials Housing material / Molded bodyPUR Approvals ApprovalsUL Bus System Fieldbus SystemProfibus OP Bus ConnectionM12 Device Indentification044F hex Transmission rate12 MBd Address range1 dec.... 126 dec. Rotary address switches1 dec.... 99 dec. Default address99 dec.
