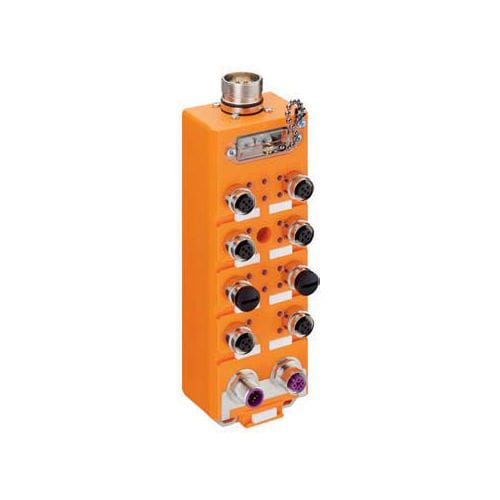

Digital I/O module 0970 PSL 113

PROFIBUS-DP8 digital inputs4 digital outputs

Order No.:27077 Type:0970 PSL 113 Description:Profibus-DP device with 8 digital inputs to connect standard sensors and 4 digital outputs to connect standard actuators, combined FIXCON/M12 socket, rotary switches for addressing, M12 bus connection, M23 power supply. Availability:available Note:The application of these products in harsh environments should always be checked before use. Color of housingorange Product characteristics:Oil résistance, EMV résistance, Vibration résistance Classification Belden class:I/O Modules with Digital Inputs and Outputs (OI/DO) Belden brand:Lumberg-Automation Mechanical data Weight:535 g Dimensions (W x H x D):60 mm x 179 mm x 51.3 mm Errvironmental conditions Environmental température:0°C... 60 °C Degree of protection (IP), mounted:IP67 Materials Housing material / Molded body:PUR Approvals Approvals:UL Bus System Fieldbus System:Profibus DP Bus Connection:M12 Device Indentification:0450 hex Transmission rate:12 MBd Address range:1 dec.... 126 dec. Rotary address switches:1 dec.... 99 dec. Default address:99 dec.
