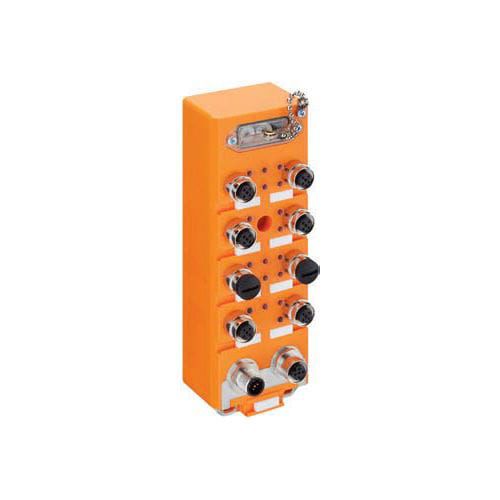

Digital I/O module 0930 DSL 109

DeviceNet16-I/O16 digital inputs

Order No.:29796 Type:0930 DSL 109 Description:DeviceNet™ device with 16 digital inputs (n-switching) to connect standard sensors, combined FIXCON/M12 socket, rotary switches for addressing, M12 bus connection Availability:available Diagnostics:The diagnostic message via the fieldbus provided by the DeviceNet™ modules of the brand Lumberg Automation™, consists of an additional input byte, which is appended to the standard input process data. Depending on the particular module, the diagnostics is sent module- or slot-based. It is generated when an overload, actuator low voltage or actuator short circuit is detected. In addition, the corresponding LEDs simplify the troubleshooting. Note:The application of these products in harsh environments should always be checked before use. Spécifications subject to alteration. Color of housingorange Product characteristics:Oil résistance, EMC résistance, Vibration résistance Classification Belden class:I/O Modules with Digital Inputs (DI) Belden brand:Lumberg-Automation Mechanical data Weight:570 g Dimensions (W x H x D):60 mm x 179 mm x 51.3 mm Environmental conditions Environmental température:0 °C... 60 °C Degree of protection (IP), mounted:IP67 Materials Housing material / Molded body:PUR Bus System Fieldbus System:DeviceNet Bus Connection:M12 Autobaud:Yes Transmission rate:max. 500 kbit/s Address range:0 dec.... 63 dec. Rotary address switches:0 dec.... 63 dec. Default address63 dec. Communication modes:Polled I/O message connection, Change of State/ cyclic message connection, Explidt message connection
