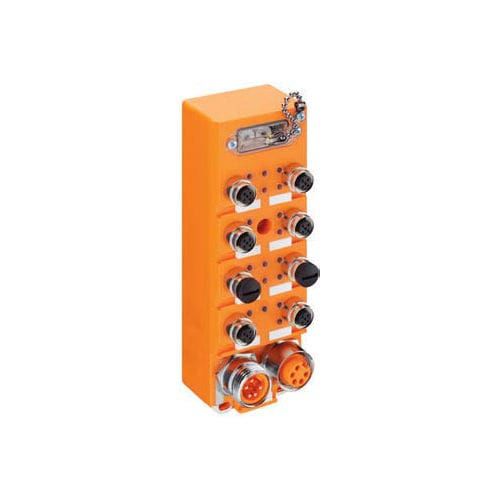

Digital I/O module 0930 DSL 312

DeviceNet16-I/O16 digital inputs

Order No.:45134 Type:0930 DSL 312 Description:DeviceNet™ device with 16 digital inputs (p-switching) to connect standard sensors, combined FIXCON/M12 socket, rotary switches for addressing, 7/8” bus connection Availability:available Diagnostics:The diagnostic message via the fieldbus provided by the DeviceNet™ modules of the brand Lumberg Automation™, consists of an additional input byte. which is appended to the standard input process data. Depending on the particular module, the diagnostics is sent module- or slot-based. It is generated when an overload. actuator low voltage or actuator short circuit is detected. In addition, the corresponding LEDs simplify the troubleshooting. Note:The application of these products in harsh environments should always be checked before use. Spécifications subject to alteration. Color of housingorange Product characteristicsOil résistance, EMC résistance, Vibration résistance Classification Belden dass:I/O Modules with Digital Inputs (DI) Belden brand:Lumberg-Automation Mechanical data Weight:570 g Dimensions (W x H x D):60 mm x 179 mm x 51.3 mm Environmental conditions Environmental température:0 °C... 60°C Degree of protection (IP), mounted:IP67 Materials Housing material / Molded body:PUR Bus System Fieldbus System:DeviceNet Bus Connection:7/8" Autobaud:Yes Transmission rate:max. 500 kbit/s Address range:0 dec.... 63 dec. Rotary address switches:0 dec.... 63 dec. Default address63 dec. Communication modes:Polled I/O message connection, Change of State/ cyclic message connection. Explicit message connection
