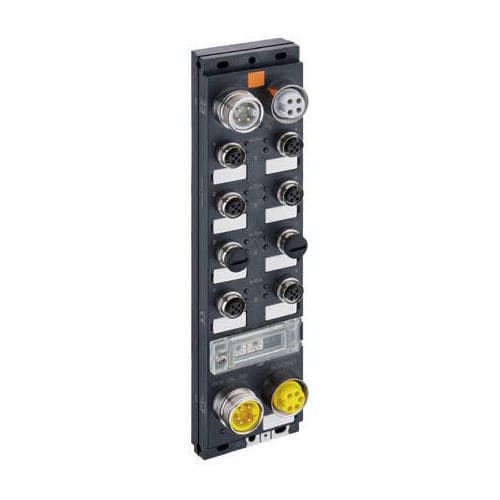

Digital I/O module 0930 DSL 700

DeviceNet16-I/OIP67

Order No.:75849 Type:0930 DSL 700 Description:DeviceNet™ device with 16 digital I/O channels, channels can be used universally as inputs or outputs, combined FIXCON/M12 socket, rotary switches for addressing, 7/8“ bus connection, 7/8“ power supply Availability:available DiagnosticsThe diagnostic message via the fieldbus provided by the DeviceNet™ modules of the brand Lumberg Automation™, consists of an additional input byte, which is appended to the standard input process data. Depending on the particular module, the diagnostics is sent module- or slot-based. It is generated when an overload. actuator low voltage or actuator short circuit is detected. In addition, the corresponding LEDs simplify the troubleshooting. NoteThe application of these products in harsh environments should always be checked before use. Spécifications subject to alteration. Color of housingblack Product characteristicsOil résistance, Vibration résistance Classification Belden classVO Modules with Digital Inputs and Outputs (DI/DO) universal Belden brandLumberg-Automation Mechanical data Weight:380g Dimensions (W x H x D):60 mm x 243 mm x 39.5 mm Environmental conditions Environmental température:-10 °C... 60°C Degree of protection (IP), mounted:IP67 Materials Housing material / Molded body:PBT Approvals Approvals:UL Bus System Fieldbus System:DeviceNet Bus Connection:7/8" Transmission ratemax.: 500 kbit/s Address range0 dec.... 63 dec. Rotary address switches0 dec.... 63 dec.
