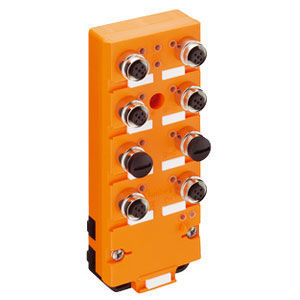

Digital I/O module 0910 ASL 408

AS-Interface4 digital inputs4 digital outputs

Order No.:10933 Type:0910 ASL 408 Description:AS-Interface flat cable module with 4 digital inputs to connect standard sensors and 4 digital outputs to connect standard actuators, combined FIXCON/M12 socket, infrared interface for the addressing Availability:available Diagnostics According to the AS-Interface specification 2.1, periphery errors like short circuits or overloads can be sent to the master in the form of a group diagnostics. In addition, there is a status LED on the relevant slave. Note The input channels are connected together. That allows a greater connection flexibility (see pin assignment). In case of connection of a two-channel sensor to input socket 1 or 3 a further sensor must not be plugged to input socket 2 or 4 respectively due to the Y wiring of the inputs. The application of these products in harsh environments should always be checked before use. Specifications subject to alteration. Color of housing orange Product characteristics Oil resistance, EMC resistance, Vibration resistance Classification Belden class I/O Modules with Digital Inputs and Outputs (DI/DO) Belden brand Lumberg-Automation Mechanical data Weight 300 g Dimensions (W x H x D) 60 mm x 152 mm x 35.8 mm Environmental conditions Environmental temperature -25 ºC ... 80 ºC Degree of protection (IP), mounted IP67 Materials Housing material / Molded body PUR Approvals Approvals UL Bus system Fieldbus system AS-Interface Version 2.1 Bus Connection ASI flat cable connection Device Indentification AS-Interface profile: S 7.F.E; I/O configuration: 7 hex; ID code: F hex; ID2 code: E hex Support A/B addressing No Supply Fieldbus Interface Supply Fieldbus Interface AS-Interface net
