Bus coupler 0940 CSL 601

electronicI/OCANopen bus

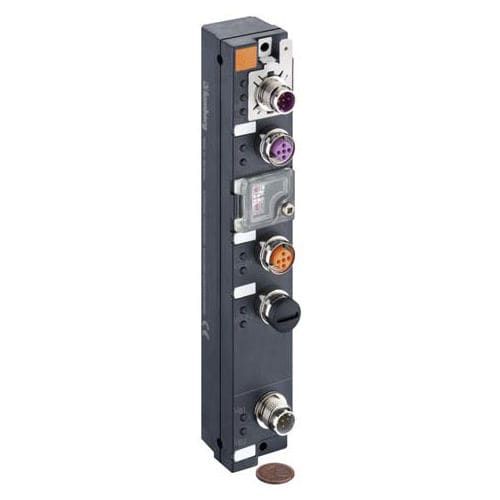

Order No.:89975 Type0940: CSL 601 Description:LioN-Link BusHead IP 67 bus coupler module, CANopen®-Slave, for the connection between the higher level fieldbus and the fieldbus independent I/O modules, with M12 bus connection, rotary switches for addressing, M12 LioN-Link connection, M12 power supply connection. Standard: Bushead for LioN-Link standard modules. Availability:available Diagnostics Diagnostics for communication status, module breakdown and periphery faults in the Link system Note A maximum of 16 LioN-Link I/O modules can be operated on this BusHead. The application of these products in harsh environments should always be checked before use. Specifications subject to alteration. Color of housing black Product characteristics Vibration resistance, Oil resistance Classification Belden class LioN-Link BusHeads Belden brand Lumberg-Automation Mechanical data Weight 200 g Dimensions (W x H x D) 30 mm x 182.4 mm x 40.4 mm Environmental conditions Environmental temperature -10 ºC ... 60 ºC Degree of protection (IP), mounted IP67 Materials Housing material / Molded body PBT Approvals Approvals UL Bus system Fieldbus system CANopen® Bus Connection M12, A coded Number of contacts 5 Transmission rate 1 Mbit/s Address range 1 dec. ... 99 dec. Rotary address switches 1 dec. ... 99 dec. Default address 63 dec. Supply Fieldbus Interface Supply Fieldbus Interface US Nominal voltage (Supply Fieldbus Interface) 24 V DC Voltage range (Supply Fieldbus Interface) 11 - 30 V DC Current consumption (Supply Fieldbus Interface) 10 mA Reverse polarity protection (Supply Fieldbus Interface) Yes Function Indicator (Supply Fieldbus Interface) LED green
