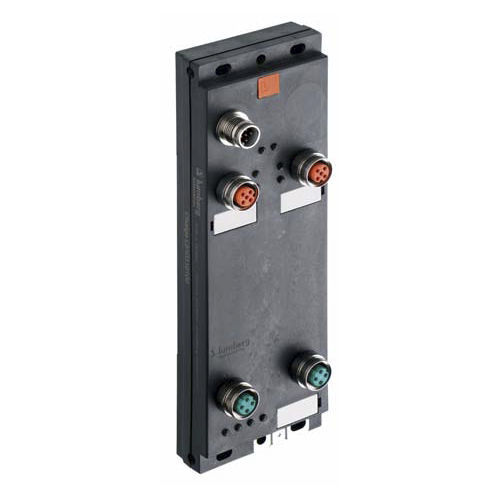

Bus coupler 0940 ESL 601

electronicI/OIP67

Order No.:105689 Type:0940 ESL 601 Description:LioN-Link BusHead IP 67 bus coupler module, ProfiNet-I/O-Device, for the connection between the higher level fieldbus and the fieldbus independent I/O modules, with M12 LioN-Link connection, M12 power supply connection, M12 LAN connection, D coded, integrated 3-port switch, web server, IRT (Isochrone Real Time communication), BusHead for LioN-Link standard modules, Motion module “0942 UEM 783”and I/O-Link module “0942 UEM 620”. Standard: Bushead for LioN-Link standard modules. Availability:available Note The application of these products in harsh environments should always be checked before use. Specifications subject to alteration. Color of housing black Product characteristics Vibration resistance, Oil resistance Classification Belden class LioN-Link BusHeads Belden brand Lumberg-Automation Mechanical data Weight 800 g Dimensions (W x H x D) 60 mm x 183 mm x 35 mm Environmental conditions Environmental temperature -10 ºC ... 60 ºC Degree of protection (IP), mounted IP67 Materials Housing material / Molded body PBT Approvals Approvals UL Bus system Fieldbus system PROFINET IO Bus Connection M12, D coded Number of contacts 4 Device Indentification VendorID: 0016A hex; DeviceID: 0302 hex Transmission rate 100 Mbit/s Transmission method 100Base-TX
