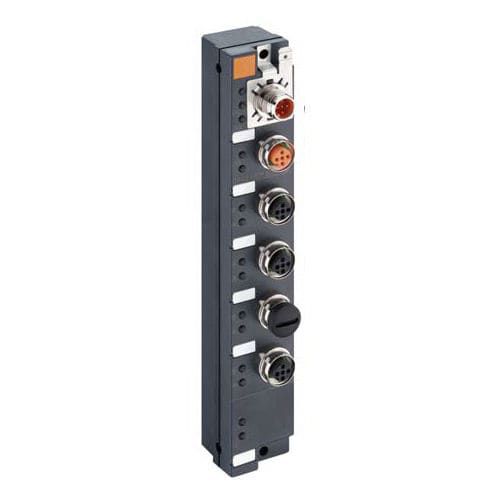

Analog I/O module 0942 UEM 631

4 analog inputsfor sensorsIP67

Order No.:102080 Type:0942 UEM 631 Description:4 AI - M12 sockets - 0-10 V: LioN-Link I/O module with 4 analog inputs, 0-10 V, to connect standard sensors, M12 sockets (4x), 5 poles Availability:available Diagnostics To facilitate troubleshooting software diagnostics for evaluation by the master is integrated as well as LED indicators for visual diagnostics. Periphery fault diagnostics for sensor short circuit, overflow. Note The application of these products in harsh environments should always be checked before use. Specifications subject to alteration. Color of housing black Product characteristics Vibration resistance, Oil resistance Classification Belden class LioN-Link I/O Modules with Analog Inputs (AI) Belden brand Lumberg-Automation Mechanical data Weight 175 g Dimensions (W x H x D) 30 mm x 182.4 mm x 40.4 mm Environmental conditions Environmental temperature -10 ºC ... 60 ºC Environmental temperature (explanation) without condensation Degree of protection (IP), mounted IP67 Materials Housing material / Molded body PBT Approvals Approvals UL
