Passive distributor RSWU 12-ASB 8/LED 5-4-331/5M

signalIP67

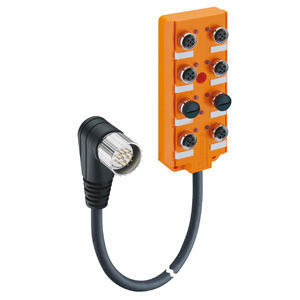

Order No.:60720 Type:RSWU 12-ASB 8/LED 5-4-331/5M Description:Actuator/sensor distribution box, 8-port version, with LED operation and function indicators, combined FIXCON-/M12 socket, 4-pole, 1 signal per socket, earth connection, integrated control cable with M23 male right angle connector, 12 poles - suitable to connect at e2c 67 I/O modules 0942 UEM 027, 0942 UEM 014 and 0942 UEM 204 - Availability:available Number of contacts 4 (M12) Version 8 ports Color of housing orange Product characteristics Vibration resistance, Oil resistance, Drag chains suitable Classification Belden brand Lumberg-Automation Mechanical data Thread M12 LED display present Environmental conditions Environmental temperature -15 ºC ... 80 ºC Degree of protection (IP), mounted IP67 Pollution degree 3 Materials Housing material / Molded body TPU, self-extinguishing Contact bearer material PBT Contact material CuZn Contact material - Surface refinement pre-nickeled and 0.8 microns gold-plated Contact bearer material, side 2 PA-GF, self-extinguishing Knurled screw / nut material CuZn, nickel-plated Sealing material FKM
