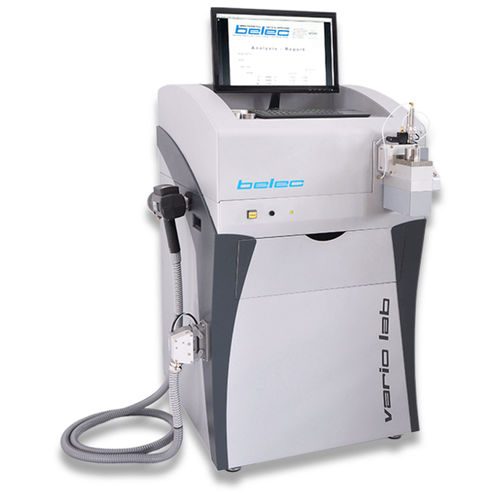

Optical emission spectrometer VARIO LAB

spark optical emissionindustriallaboratory

Belec has entirely re-designed the well established laboratory spectrometer. The Belec Vario Lab again sets a unique standard in terms of precision and flexibility as it has been continuously improved in order to fulfill today’s needs for metal analysis. It is – again- the most competitive in terms of flexibility as far as sample size and shape is concerned. Next to the fixed sparking stand it can be equipped with an additional sparking probe. highest analysis accuracy and precision maximum long term stability low detection limits virtually no limitations in terms of sample size and shape robust laboratory spectrometer flexibility through manifold equipping options free accessible sparking stand for larger samples operator friendly Analysis Program Belec Win21 integrated dynamic alloy database base specific drift correction samples included installation and instruction by qualified personnel very low operating costs spectrometer in Paschen-Runge mounting Rowland circle diameter 500 mm usable wavelengths grating 3600 lines/mm reciprocal dispersion 0,52 nm/mm (1st order) shock resistance photomultiplier detector systems are ±0.1°C temperature stabilised for excellent long-term stability optionally 2nd spectrometer optics* up to 11 bases and 108 measuring channels possible inert gas-breathed optical chamber with gas purifier system optional optic with usable wavelengths up to 800 nm* 2 stage rotary vacuum pump large oil separator oil vapor trap vacuum gauge in front panel sparking generator with maximum 400 Hz frequency unipolar discharge separate parameter for pre-sparking and integration selectable via software
