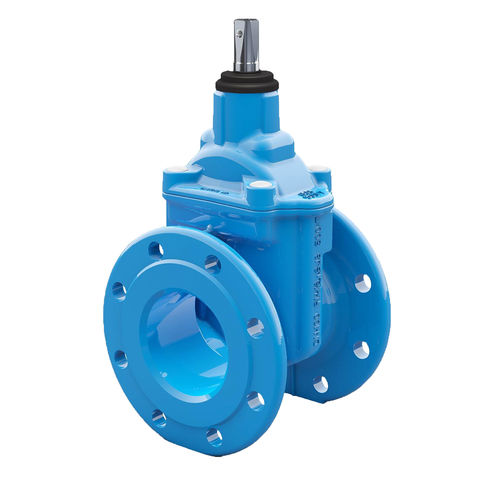

Gate valve INFINITYmanualisolationfor water
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- manual
- Function
- isolation
- Media
- for water
- Body
- male
- Other characteristics
- locking
- DN
Min.: 40 mm
(1.575 in)Max.: 700 mm
(27.559 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Min.: -10 °C
(14 °F)Max.: 70 °C
(158 °F)
Description
INFINITY gate valve F4-F5 DN40-700 PN10/16
INFINITY gate valve
_INIFINITY and its new wedge and stem technology ensures smooth functionality with outstanding low torque values.
_New guiding system for the wedge with male composite sliding skate in order to easily achieve the 2500 cycles enurance test required by European standards.
_Bayonet stuffing nut with three o-rings to guarantee the tightness throughout the stem.
Patented three locking tab for bayonet system to avoid self dismantling, leakage and blow up risk.
_Body length: long pattern (serie S15) and short pattern (serie S14), according to EN 558.
_Nominal Pressure: PN16
_Flange drilling: PN10 or PN16 according to EN 1092-2
_Temperature:
Epoxi coating: -10C a +50C
Enamel coating: -10C a 70C
