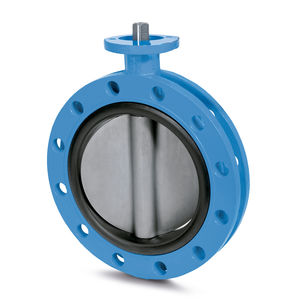

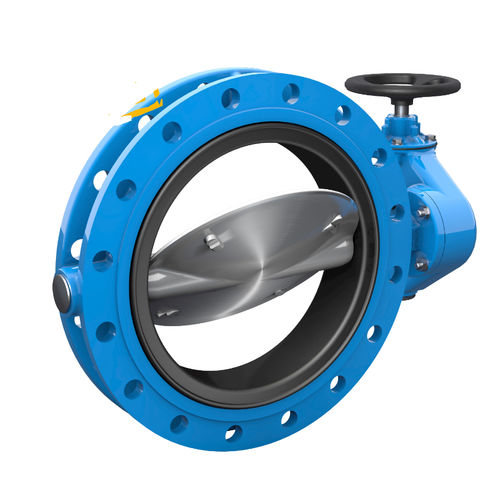

Butterfly valve GREATGOLD

with handwheelfor watershaft

GREATGOLD - Centric Butterfly Valve Based on 30 years of experience with butterfly valves, BELGICAST presents a completely new and trendsetting design. With increased durability and functional features down to the last detail – Quality Made in Europe. We have developed GREATGOLD to ensure smooth operation for high-cycle operations. Significantly reduced torques allow the use of smaller gearboxes and actuators. The polygonal shaft-disc connection is free of play without additional pins and transmits the torque without losses. The new liner provides extended service life due to an innovative profile and auto-lubricated material composition. CLICK HERE FOR MORE INFO Design according to EN 1074-2 Face-to-face dimension acc. to EN558 series 20 Wafer or Flanged body Nominal Diameter (DN): DN 350 to 600 (DN 700-1600 coming soon) Nominal Pressure (PN): PN 10 to PN 16 Medium Temperature: Standard up to 50°C (other possibility according to disc and liner material)
