Butterfly valve

manualisolationfor water

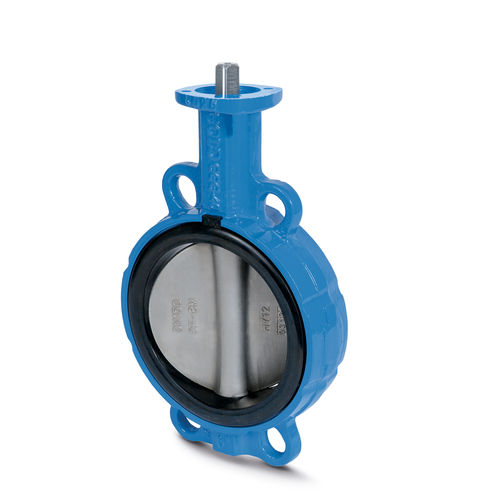

Wafer centric butterfly valve The centric butterfly valve « GOLD range » is the basic solution for bidirectional isolation functions by means of a butterfly valve. It is the perfect choice for installation between two piping flanges, or at the end of pipelines. Due to its extremely short face-to-face dimension, the valve is very compact. Therefore, it allows also the surrounding buildings to be dimensioned very compact and cost-effective. As the valve body is fully covered with a rubber sealing, this valve type can be used in many applications by just adapting the disc coating or material to the application requirements without any huge special effort. The valve is suitable for bidirectional use and is tight in both directions. According to standards EN 593, EN 1074-1 and 1074-2 DN32 to 700 PN10 to 16 Body in ductile iron with epoxy coating Disc GGG-40 or AISI-316, other materials upon request Top flange according to ISO 5211 with free shaft for connection of actuation system Compatible with flange according to EN1092-2 / PN10 or 16 Clockwise closing Face to face dimension according to EN 558 / Series 20
