Ball valve
with handwheelfor controlfor hot water

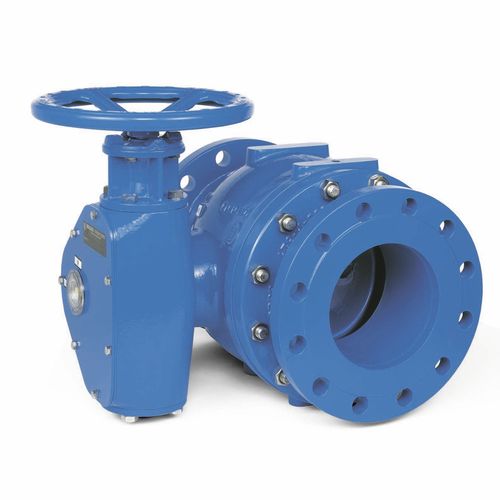

Ball valve - Belgicast - with handwheel / for control / for hot water
Ball valve - Belgicast - with handwheel / for control / for hot water
Add to favorites
Compare this product


Characteristics

Type
ball
Operation
with handwheel
Function
for control
Media
for hot water
Body
epoxy, NBR
Other characteristics
high-pressure
DN

Max.: 1,200 mm
(47.244 in)

Min.: 80 mm
(3.15 in)

Pressure

Max.: 40 bar
(580.2 psi)

Min.: 10 bar
(145 psi)

Description

Double eccentric Ball Valve When toughest conditions occur, ball valves are the recommended valve type. This valve type can cope with the highest operating pressures of up to 160 bar and extremely high flow velocities of 15m/s. The double-eccentric design ensures a long service life of the valve. At the same time, a ball valve literally does not create any pressure loss in the fully open position and is therefore the ideal solution for applications where energy-efficiency really matters: Turbine systems and high pressure pumping stations. CLICK HERE FOR MORE INFO DN80 to 1200 PN10 to 40 Straight clear way pattern NBR sealing material With handwheel Visual position indicator included on the gearbox Epoxy coating inside / epoxy coating outside Flanges drilled according to EN1092-2 Clockwise closing Face to face dimension according to EN 558 / Serie 26
