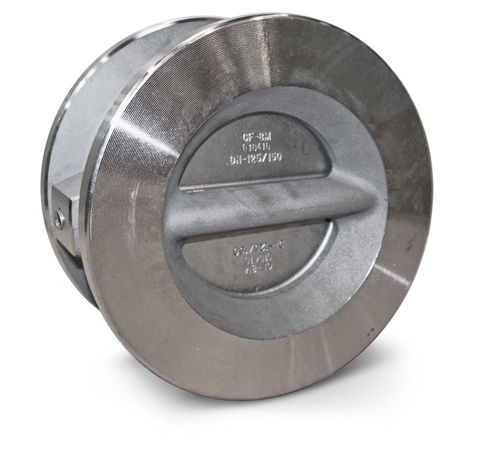

Dual plate check valve

bronzealuminumcompact

Dual Plate Check Valves The dual plate check valve is one of the most compact check valves. When fluid enters the valve, the pressure causes the doors to open, stretching the spring. When the flow stops, the spring returns to its compressed state, making the plates return to the closed position, ensuring a quick closing. TALIS Dual Plate check valves offer a wide range of possibilities according to your applications and network operating conditions. Maximum working temperatures depend on materials selection. Body: ductile iron GGG-40, ASTM A216 Gr WCB, CF-8M Plates: ductile iron GGG-40, ASTM A216 Gr WCB, CF-8M, Aluminium-Bronze Shafts: AISI-304, AISI-316, Monel 400 Springs: AISI-302, AISI-316, Inconel 750X Seat: EPDM, BUNA-N, Heat EPDM, Viton Minimum back pressure to ensure water tightness 0.5 bar. Wafer version in standard, flanged upon request. MODEL B Face to face dimension according to API-594. DN50 up to DN1000. Installation between flanges PN10, PN16, PN25, PN40 or ANSI-150, ANSI-300, ANSI-600, ANSI-900 and ANSI-1500. Maximum working pressure 100 bar depending on selected material.
