Ball valve F1 10manualfor airmale
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Media
- for air
- Body
- male
- Applications
- flange
- Associated function
- exhaust
- Other characteristics
- automatic
- DN
Min.: 40 mm
(1.575 in)Max.: 80 mm
(3.15 in)- Pressure
Min.: 10 bar
(145 psi)Max.: 40 bar
(580.2 psi)- Temperature
70 °C
(158 °F)
Description

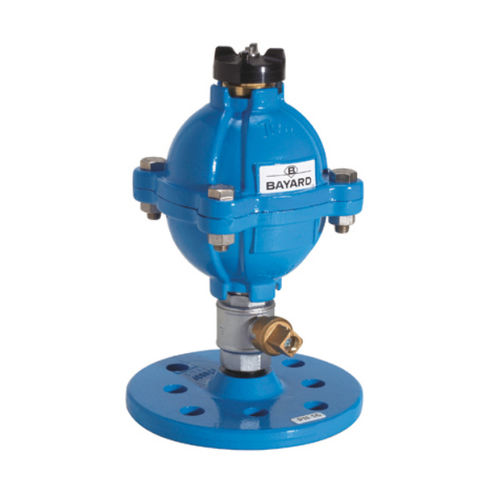

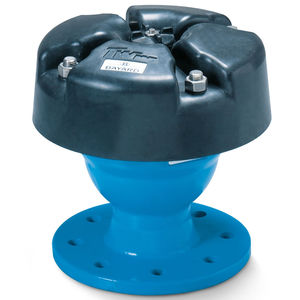

Automatic air valve
One function: automatic degassing
A simple design providing a long-lasting efficiency, the TALIS AUTOMATIC AIR VALVE is adaptable to your operation conditions thanks to its different connections and pressure class.
The smart exhaust technology from the larger three functions air valves has been adopted on the AUTOMATIC AIR VALVE, for an easy, safe and long service life.
Nominal Diameter (DN): 1’’ Male / DN40 up to DN80
Working pressure (acc. to DN): 16 bar, 25 bar or 40 bar
Flange drilling (depending on DN and working pressure): ISO PN10, PN16, PN25 or PN40 acc. to DN
Medium Temperature: up to + 70°C
• Safety controller
• Integrated full bore
stopcock
