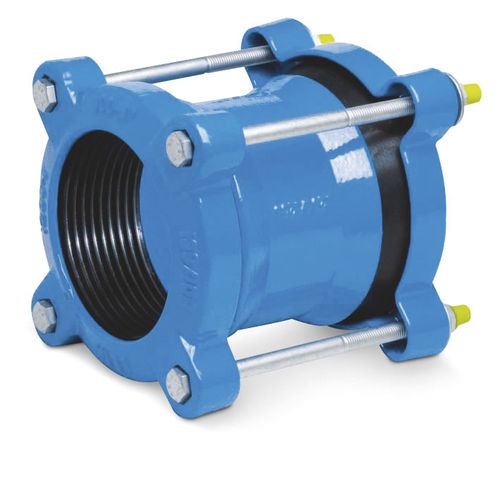

Universal pipe coupling 1200 LIBERTYflangeepoxycoating
Add to favorites
Compare this product
Characteristics
- Function
- universal
- Connection type
- flange
- Material
- epoxy, coating, EPDM
Description
Universal coupling SERIES 1200 Liberty
Large tolerance – Covers multiple pipe materials in each individual unit, enabling stock reduction and simplifies installation.
Up to 28mm of tolerance, covering most common pipe materials.
High quality materials – Selected for strength and corrosion resistance.
Range: from DN40 to DN450
Body: EN-GJS-500-7
End rings: EN-GJS-500-7
Gasket: EPDM [EN681/1]
Bolts: Mild Steel 6.8 Geomet
Coating: Epoxy 200μ minimum DFT
Flange drilling: PN10/16/ANSI150 drilled
Max WP: 16 bar [water]
Catalogs
1200 LIBERTY
2 Pages
