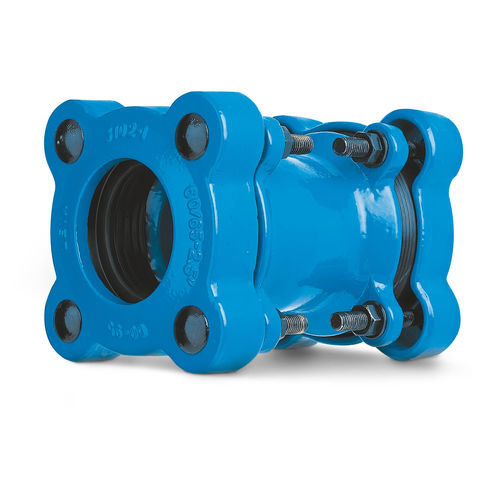

Joining pipe coupling 3100

epoxycoatingEPDM

Multidiameter coupling SERIES 3100 With up to 43 millimetres of tolerance, Series 3100 & 3200 covers a large array of pipe materials making them one of the most versatile solutions on the market today. These high quality couplings and flange adaptors are available from DN50 to DN800 and allow a maximum angular deflection of +/-5° per gasket. The independent bolting system ensures a perfect seal and easy installation even in cases when pipe materials with large differences in outer diameters are joined together. EXTREMELY VERSATILE -Up to 43mm of tolerance covering almost any pipe material. Extra large tolerance – Designed for repair situations when the pipe diameters & materials are unknown beforehand, reduces stockholding and simplifies installation. Independent bolting – Enables the applied pressure to be perfectly matched to the individual pipe connected on each given end, especially of added value when joining different pipe materials. High quality materials – Selected for strength and corrosion resistance. Body: EN-GJS-500-7 End rings: EN-GJS-500-7 Gasket: EPDM [EN681/1] Bolts: Mild Steel 8.8 Geomet Coating: Resicoat Epoxy 200μ minimum DFT Flange drilling: PN10/16 drilled (ANSI150 on request) Maximum angular deflection: +/- 10° per gasket Max WP: 16 bar [water]
