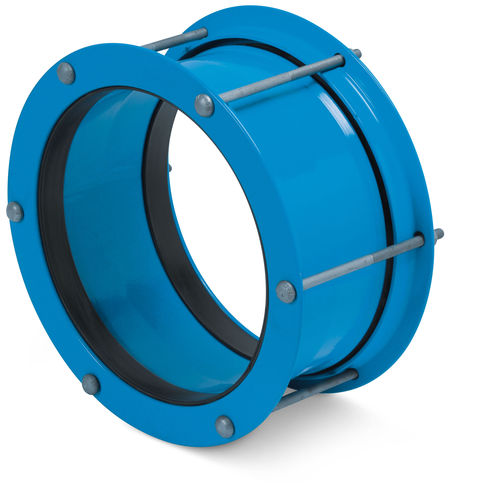

Epoxy pipe coupling EUROCOUP

galvanizedcoatingstainless steel

EUROCOUP coupling The EUROCOUP solutions are ideal for situations where the selected pipe materials, pressure ratings and nominal sizes are specified in advance (i.e. new lay-pipes]. From DN300 onwards, these Couplings and Flange Adaptors are manufactured from steel in accordance to AWWA-C219, which enables a high rate of customizable options. Diameters beyond DN3000, pressures exceeding 100 bars, special lengths, various steel grades and different coatings make EUROCOUP a highly flexible range of solutions for even the most demanding pipeline projects. Stepped solutions are part of the range as well. Body: EN-GJS-500-7 or S235EN10025 End rings: EN-GJS-500-7 or S275EN10025 Gasket: EPDM [EN681] or NBR Bolts: Hot Dip Galvanized or Stainless Steel AISI316-A4 Standard coating: Resicoat RT9000 R4 Epoxy, 305microns (Higher SteelGrades, Special Coatings, Various Flange Drillings/ Dimensions, Bolt Materials, Gaskets available on request] CHARACTERISTICS Manufacturing and design – In accordance with AWWA-C219 guaranteeing an absolutely leakproof product. High quality materials – Selected for strength and adaptability. Proven design in many prestigious and challenging projects worldwide. STEPPED COUPLINGS AND FLANGE ADAPTORS For situations where pipe ends with large differences in diameter have to be joined, the EUROCOUP range can be customized into stepped designs based on customer requirements.
