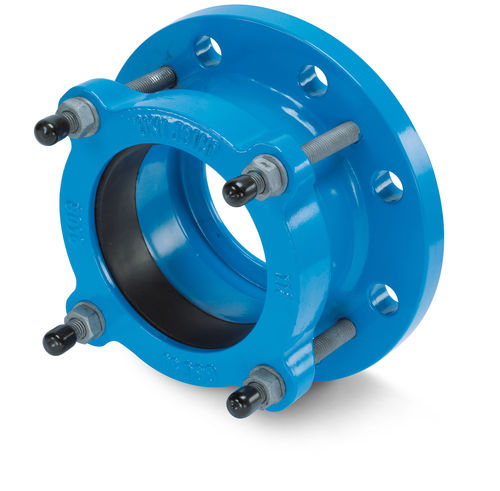

EUROCOUP flange adapter
The EUROCOUP solutions are ideal for situations where the selected pipe materials, pressure ratings and nominal sizes are specified in advance (i.e. new lay-pipes].
From DN300 onwards, these Couplings and Flange Adaptors are manufactured from steel in accordance to AWWA-C219, which enables a high rate of customizable options.
Diameters beyond DN3000, pressures exceeding 100 bars, special lengths, various steel grades and different coatings make EUROCOUP a highly flexible range of solutions for even the most demanding pipeline projects. Stepped solutions are part of the range as well.
Body: EN-GJS-500-7 or S235EN10025
End rings: EN-GJS-500-7 or S275EN10025
Gasket: EPDM [EN681] or NBR
Bolts: Hot Dip Galvanized or Stainless Steel AISI316-A4
Flange drilling: PN10, 16, 25, 40 [ANSI Drilling on Request]
Standard coating: Resicoat RT9000 R4 Epoxy, 305microns (Higher SteelGrades, Special Coatings, Various Flange Drillings/ Dimensions, Bolt Materials, Gaskets available on request]
CHARACTERISTICS
Manufacturing and design – In accordance with AWWA-C219 guaranteeing an absolutely leakproof product.
High quality materials – Selected for strength and adaptability.
Proven design in many prestigious and challenging projects worldwide.
STEPPED COUPLINGS AND FLANGE ADAPTORS
