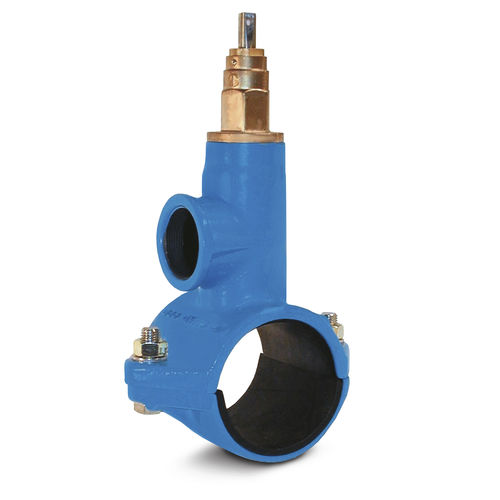

Clamp saddle PVCFIX/VAS32 series

SERIES PVCFIX/VAS32 For the tapping of PVC pipelines to DIN 8062 under pressure. It has a wide bearing surface completely coated with rubber to protect the pipe, a side threaded 2" outlet and an integrated cutter. Before mounting the tapping saddle on the PVC pipe the cutter is screwed up inside the spindle, and the saddle and strap are secured onto the pipe with two stainless steel bolts. Subsequently the tapping is carried out directly by the spindle. The drilling slug is captured in the interior of the cutter, and therefore is not flushed out. The cutter is made from brass, or above DN200 from stainless steel.
