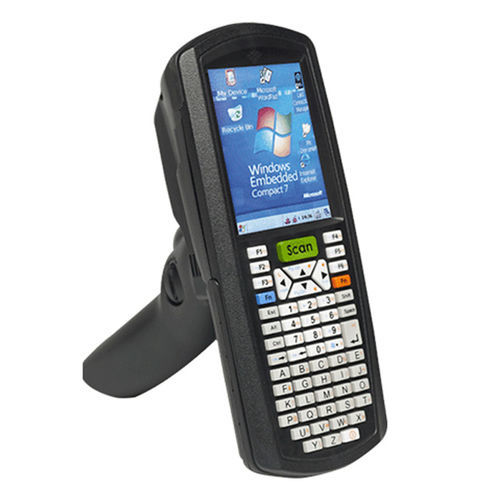

The TS8550i is a ‘Tour de force’ in both design and ingenuity, suitable for rigorous use in the most extreme conditions. The metal alloy chassis combined with high impact polycarbonate plastics and highly durable, hard-capped keys ensure that the TS8550i provides industry leading ruggedness and reliability.
Buy with confidence:
IP65 rating for full protection against dust, water and oil ingress
Survives 1.5m drops on to concrete
Operates in wide temperature extremes (-20°C to +50°C)
Rugged polycarbonate touchscreen
High impact shock absorbers
ATEX Certification Ex II 3 G Ex mc ic IIC T4 Gc
Dimensions – 85mm (W) x 40mm (D) x 205mm (H)
Weight – 530g (with main battery and pistol grip),
460g (with main battery, without pistol grip)
Case – Impact resistant, flame retardant
Rubber Moulded Bumpers – High impact shock absorbers
Case Material – UV stabilised polycarbonate
DISPLAY SPECIFICATION
3.5” QVGA Colour TFT, Anti- Glare, 240 x 320 pixels, LED Backlit,
Direct Sunlight Readable, Programmable Dimming
TOUCHSCREEN
High Impact Industrial Polycarbonate,
Resistive – Finger,
Stylus – Glove operable, Signature capture
AUDIO SPECIFICATIONS
High Power Speaker,
Microphone
PERFORMANCE SPECIFICATION
Processor – TI OMAP 800MHz - 1GHz (Windows),
Processor – NXP iMX6 (Android)
MEMORY / STORAGE SPECIFICATIONS
256MB NAND Flash – Standard - 512MB Option
256MB Low Power DDR RAM - 512MB Option
COMMUNICATION AND INTERFACE PORTS
Micro SD Card (Under Battery),
USB 2.0 OTG, SIM Card Socket, RS232
INTERNAL BATTERY BACKUP
Single Lithium Ion cell, 1200mAh, 4.6Wh WIFI 802.11a/b/g/n (2.4GHz/5GHz)
