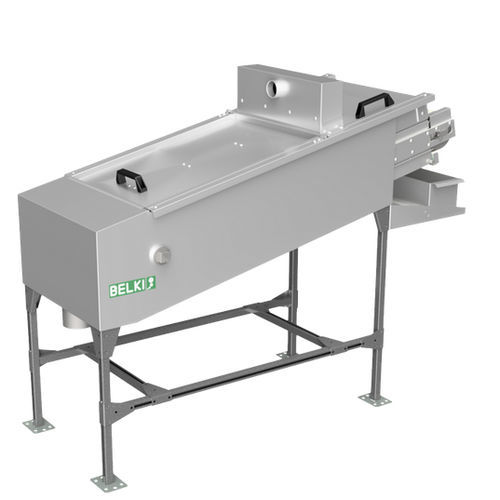

Liquid filter 3.10A

beltmagneticprocess

Magnetic fine filtration of process fluids is particularly suited to filtration of fluids with particles from grinding and cast iron processing. The magnetic filter has various applications such as coolants, grinding fluids, washing fluids up to 80°C and other fluids with ferritic particles. A magnet filter is often used in combination with BELKI deep bed band filters or central systems. Filtration of the very fine particles extends the lifetime of the process fluid and protects nozzles, valves and rotating clutches in processing machines Filtration occurs without any use of consumables and the unit has low energy consumption The filter has a high degree of filtration and high capacity Effective for cast iron particles as the graphite particles tie to the ferrite Designed in stainless steel By fully automatic magnetic band / belt filters (model 3.10 A, 5.13 A and 7.20 A) the forwarding intervals can be adjusted, ensuring that the filter cake has the necessary drying time and dry sludge is easier and cheaper to dispose of BELKI's automatic magnetic belt filters are the solution for the filtration of ferritic ultra-fine particles with high sludge volumes. The process fluids are usually filtered in by-pass. Depending on the medium, up to 1000 l/min can be filtered with the automatic magnetic belt filter. Suitable for use on grinding machines, machine tools, washing systems and central systems, among others.
