Hydraulic piston pump MHP seriesmanualpaintfor vehicles
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- manual
- Applications
- for vehicles, paint
- Other characteristics
- compact, high-pressure, oil, adjustable, fixed-displacement, double, rotary, OEM, flow, small
- Pressure
420 bar
(6,092 psi)- Weight
2.5 kg
(5.51 lb)- Fluid temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description

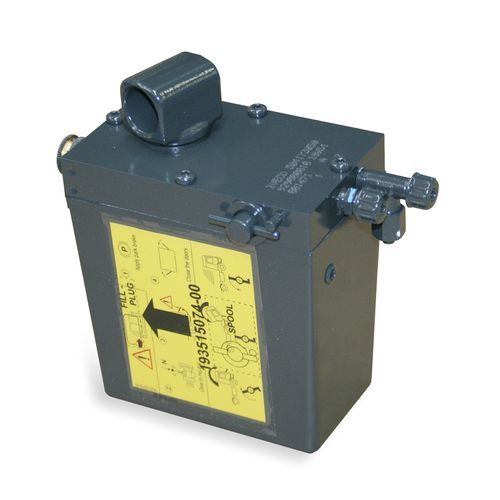

Single and double acting MHP pump for cab tilting systems
The hydraulic hand pump MHP is designed for cabin tilting systems on the Iveco truck lines, however it is suitable and mostly applicable in the Aftermarket. These are the main fields of applications:
Livestock and Agriculture: trailer bodies, lifting forks
Industry: guide presses, rotary tables, tank overvoltage, single and double acting cylinder drives
Transport: small hydraulic cranes, trucks, cabin tilting, concrete mixers.
Compact design and low weight, these pumps can reach a working pressure up to 420 bar and they are very resistant to the corrosion of the atmospheric agents.
MHP: hand hydraulic pump for cab tilting systems: main features
Manual operation
Compact design
Adjustable relief valve
440 & 580 cm3 oil tanks
Oil flow 4cm3/stroke
Resistance to corrosion and atmospheric agents
Oil fill and level control cap
