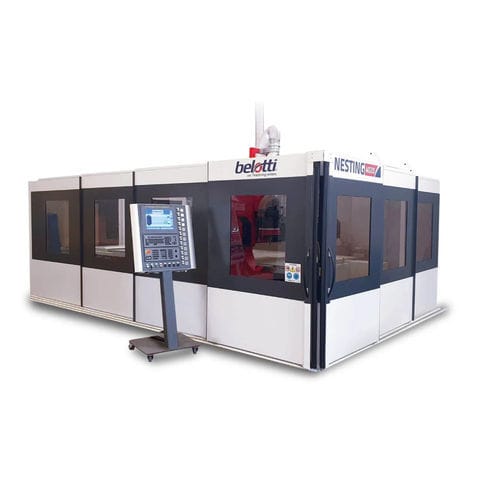

3-axis CNC machining center NESTING

verticalfor aluminumfor plastics

The NESTING Series is Belotti’s compact and highly flexible technological solution, developed to meet the demands of multiple industrial sectors: packaging, mechanical industry, checking fixtures, automotive and aerospace. It’s the ideal solution to machine and nest even small pieces out of large aluminum plates or technical plastic panels, up to 50 mm thick. The three-axis machining centers of the NESTING Series are characterized by a small footprint and machining efficiency indicators of 100% for plastics, 70% for aluminum and 30% for resins. The minimum footprint configuration, combined with the high dynamism of the milling head, guarantee maximum quality of the machined surfaces and high productivity thanks to the optimization of the cycle-times and the material used. The Belotti NESTING 3-axis centers are designed to operate in unattended mode during the entire cycle-time, allowing a significant reduction in operator-cost and a high return on investment (ROI). The compact and monolithic structure, made up of electrowelded steel with double 90° slideways on both baseframe sides, grants a high rigidity of the bridge and a reduction in handling and installation times. The aluminum suction table with MDF panel and vacuum locking system and the suction system with NC electronic adjustment of the hood, ensure a better cleaning and safety of the working environment. The “Easy Programming” option, the CAM/CNC plug-in software developed by Belotti, simplifies the programming of 2D geometries nesting and complex machining operations, supporting the operator with machining center’s operation. Sectors Packaging Checking fixtures Railway Marine Energy and building
