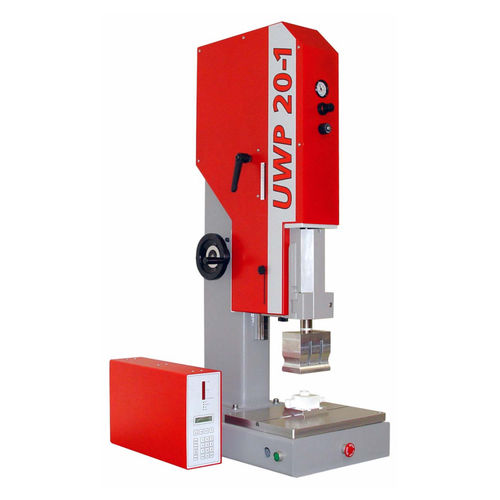

Welding press UWP 20-1pneumaticformingpunching
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Function
- forming, punching, cutting, riveting, welding
- Force
Min.: 0 N
Max.: 3,000 N
- Stroke
Min.: 0 mm
(0 in)Max.: 100 mm
(3.937 in)- Max. pressure
6 bar, 7 bar
(87 psi, 102 psi)- Weight
130 kg
(287 lb)- Overall length
600 mm
(24 in)- Overall width
430 mm
(17 in)- Overall height
Min.: 1,300 mm
(51 in)Max.: 1,530 mm
(60 in)
Description
Suitable for welding, riveting and forming of thermoplastic parts as well as welding, punching and cutting of nonwovens and textile materials.
Microprocessor controlled for fast and easy to operate operation. 99 database places to save all working parameters.
Welding modes: Time / Energy / Distance / Force / US Stop.
Time and Differential pressure Trigger.
Parts measuring system.
Distance welding: absolute and differential.
