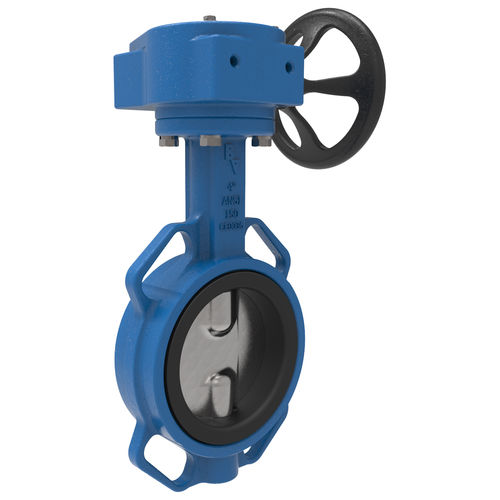

Butterfly valve BV10 Serieswith handwheelisolationfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Function
- isolation
- Media
- for wastewater, for hot water, for potable water, for cooling water, for industrial water, for fuel, for seawater, for pure water, for brine, for cold water, for oil, for sludge, for liquid food products and beverages, for chemical products
- Body
- with actuator flange, flange-mounted, with ISO flange connections, wafer, soft-seat, ATEX, cast iron, PTFE, EPDM, NBR, abrasion-resistant rubber, PTFE-coated
- Applications
- for water, for industrial applications, for the chemical industry, for refrigeration, for water treatment, for hygienic applications, for solids, for bulk materials, for swimming pool, for heavy-duty applications, for the construction sector, industrial, for fire extinguishers, for hazardous environments, powder, for food, for the food industry, flange, process, beverage, for pipe, sanitary, for slurries, for marine applications, cement, for the pharmaceutical industry, for the petroleum industry, for actuators, for storage tanks, for abrasive products, for sand, for explosive atmospheres, for liquids, for the gas industry, for heating, HVAC, fuel, for pipelines, for vacuum, for automation, sanitary, for HVAC installations, for water purification systems, for medical applications, for tank
- Fluid specification
- for corrosive fluids, for aggressive media, for abrasive fluids, for flammable fluids, for hazardous fluids, for powders, for toxic fluids, for solids-laden fluids
- Other characteristics
- ANSI
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 6 bar
(87 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description
• wafer type butterfly valve designed according EN 593
• flange connections according EN 1092-2 - PN6/10/16,
ASME/ANSI B16.5 class 150, ASME/ANSI B16.47 class 150 series A
• face to face dimension according EN 558-1 series 20,
ISO 5752 series 20, DIN 3202 K1, API 609 cat.A, BS 5155 table 6,
MSS SP-67 table 3
• seat vulcanised on exchangeable backupring
• available in various body, disc and seat material
