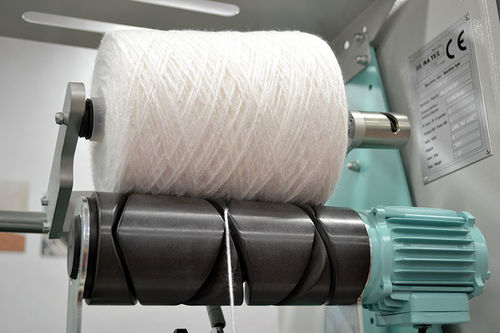

Yarn winding machine MOD. CA-200

automaticpackage

Electronic cone winding machine with grooved drum Designed to rewind packages after dyeing and produce a measured length and waxed package suitable for knitting and weaving TECHNICAL DATA Machine configuration CA - 8 inch (200 mm) - from 6 up to 60 spindles, single sided (6 spindles per unit) - from 12 up to 60 spindles, double sided (12 spindles per unit) Yarn traverse - 8 inch (200 mm) Conicity 0°00’ - 3°30’ - 4°20’ - 5°57’ - interlocking bobbins and Biko-press dyeing tubes Package’s diameter up to 290 mm Feeding package’s diameter up to 300 mm Motorization individual ac coaxial motor per spindle Voltage supply 400V 3phase – 50/60Hz Power installed 0,12 Kw per spindle Take-up speed from 250 to 900 m/min Grooved drums available Ø 90 mm, 2,5 turns variable pitch Ø 90 mm, 2,5 turns constant pitch
