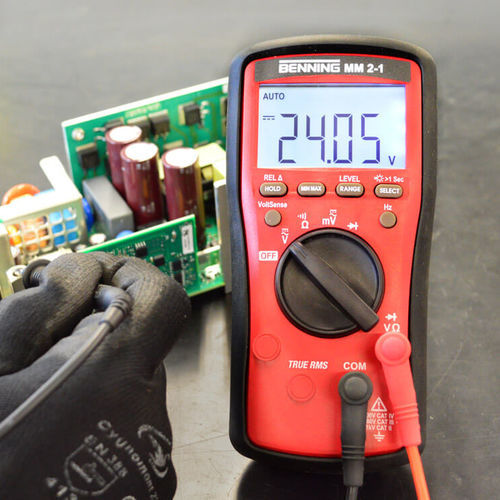

Digital multimeter MM 2-1
portable1000 V10 A

digital multimeter
digital multimeter
digital multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V
Max current
10 A
Safety rating
cat III
Additional features
with data logger
Applications
industrial
Other characteristics
true RMS
Max DC voltage

Max.: 1,000 V

Min.: 0 V

Max AC voltage

Max.: 1,000 V

Min.: 0 V

Max DC current

Max.: 10,000 mA

Min.: 1 mA

Max AC current

Max.: 10,000 mA

Min.: 1 mA

Max resistance measure

Max.: 60 Ohm

Min.: 0 Ohm

Max capacity measure

Max.: 10 µF

Min.: 0 µF

Max frequency measure

10 Hz

Process temperature

Max.: 400 °C
(752 °F)

Min.: -40 °C
(-40 °F)

Description

The new TRUE RMS digital multimeter series in an ergonomic housing with robust protective rubber holster is suited for various measuring tasks in electrical trade, industry, service and HVAC technology. Measuring functions resistance measurement (60 MΩ) frequency measurement (50 kHz) quick continuity test (< 15 ms) with optical and acoustic indication diode test Voltsensor function for non-contact and single-pole phase testing (2 sensitivities) Features backlit digital display with a resolution of 6,000 digits precise TRUE RMS measuring method for measuring non-linear signals MIN/MAX/average and relative value measurement (REL) jack control (visual/acoustic) in the A ranges with warning in case of operating errors for fuse protection display HOLD for storage of the current measured value compact and ergonomic housing for one-hand operation robust protective rubber holster for increased grip and impact resistance Scope of delivery digital multimeter with robust rubber holster high-quality silicone measuring leads with gold-plated 2 mm and 4 mm measuring probe (screw-on type) carrying case wire temperature sensor batteries (2 x 1.5 V micro AAA/ IEC LR03)
