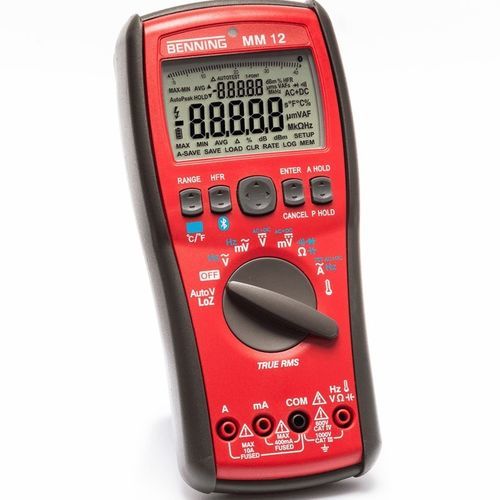

Digital multimeter MM 12
portable1000 V600 V

digital multimeter
digital multimeter
digital multimeter
digital multimeter
digital multimeter
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
1000 V, 600 V
Max current
10 A
Safety rating
cat III, cat IV
Additional features
with data logger
Applications
industrial
Other characteristics
AC/DC, true RMS, USB
Max DC voltage

Max.: 1,000 V

Min.: 0 V

Max AC voltage

Max.: 1,000 V

Min.: 0 V

Max DC current

Max.: 10 A

Min.: 0 A

Max AC current

Max.: 10 A

Min.: 0 A

Max resistance measure

Max.: 40 mOhm

Min.: 0 mOhm

Max capacity measure

Max.: 40,000,000 nF

Min.: 0 nF

Max frequency measure

Max.: 100,000 Hz

Min.: 0 Hz

Length

206 mm
(8.11 in)

Width

94 mm
(3.7 in)

Height

54 mm
(2.13 in)

Weight

640 g
(22.58 oz)

Description

For all sophisticated measuring tasks in industry and trade. Monitor, store and share the measured values for further evaluation within your organization via the free “BENNING MM-CM Link” app. Features: data logger function “LOG” (40,000 measured values, sampling arte: 1 s to 10 min.) memory function “MEM” (1,000 measured values, automatic storage of stable measured values and manual storage with a simple keystroke) IOS and AndroidTM app for data link to smartphone/tablet “AutoV” function for automatic AC/DC voltage detection and low input impedance LoZ (< 3 kΩ) to suppress reactive voltages low-pass filter (HFR) for measurements at pulsed motor drives easy selection of menu functions via cursor key memory of measured value (HOLD), peak value (P-HOLD), relative value function (REL), maximum/minimum/average values (MAX/MIN/AVG) and level measurement (dB/dBm) incl. PC software, serial data cable with USB connection, protective rubber holster, magnetic holder, carrying case, batteries, measuring leads, wire temperature sensor and calibration certificate Features of the BENNING MM 12 optical USB interface LC display with illumination number of memory locations: 40,000 (data logger function “LOG“)
 1,000 (memory function “MEM”) Bluetooth® Low Energy 4.0 interface
