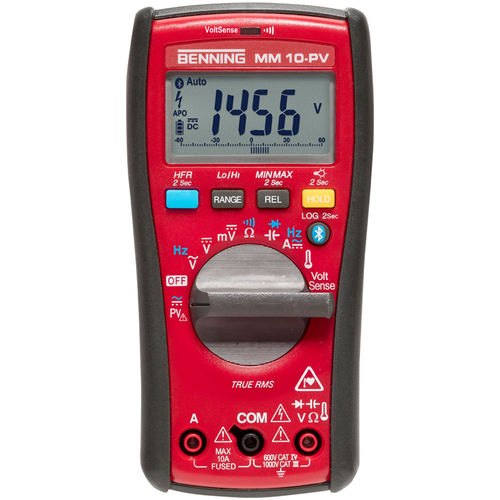

Digital multimeter MM 10-PVportable1000 V600 V
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V, 600 V, 1500 V, 2000 V
- Safety rating
- cat III, cat II, cat IV
- Additional features
- with data logger
- Other characteristics
- true RMS
- Max DC voltage
Min.: 0.1 mV
Max.: 2,000,000 mV
- Max AC voltage
Min.: 0.1 mV
Max.: 1,500,000 mV
- Max DC current
Min.: 1 mA
Max.: 10,000 mA
- Max AC current
Min.: 1 mA
Max.: 10,000 mA
- Max resistance measure
Min.: 0 Ohm
Max.: 40,000,000 Ohm
- Max capacity measure
Min.: 1 nF
Max.: 10,000,000 nF
- Max frequency measure
Max.: 100 kHz
Min.: 0 kHz
- Process temperature
Max.: 400 °C
(752 °F)Min.: -40 °C
(-40 °F)- Length
163 mm
(6.42 in)- Width
82 mm
(3.23 in)- Height
50 mm
(1.97 in)- Weight
425 g
(14.99 oz)
Description
precise due to TRUE RMS measuring method
data logger, memory function and Bluetooth® Low Energy 4.0 interface
app BENNING MM-CM link for download, storing and sharing measured values via smartphone/tablet
low-pass filter (HFR high-frequency suppression) for measurements at pulsed motor drives
Volt sensor for non-contact phase and cable break test (red LED)
memory of measured value (HOLD) and minimum/maximum value memory (MIN/MAX)
inkl. rubber holster, measuring adapter BENNING TA PV, measuring leads, crocodile clips, carrying case, wire temperature sensor and batteries
