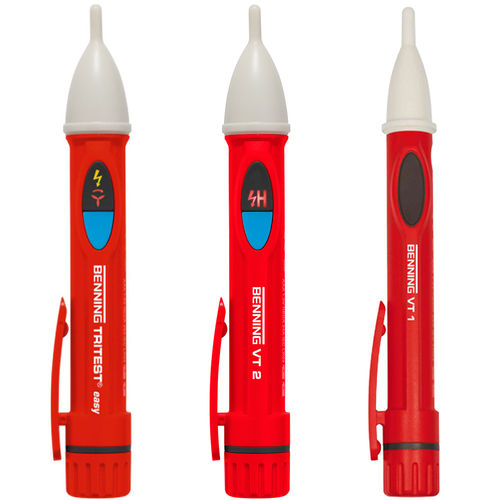

Phase sequence tester TRITEST® easy

magnetic fieldfor hydraulic installationsvalves

For quick and easy phase testing of sockets, distribution boxes, switches and lamps. Locates cable breaks and defective lamps in chains of light and insulated cables. For testing the phase sequence (right/left) and phase balance in three-phase systems (TRITEST® easy). For testing solenoid valves in pneumatic and hydraulic systems, heating systems, pumps as well as relays in vehicles, machines, devices and control systems . non-contact testing, no contact to the electrical conductor required phase (external conductor) testing by means of red LED probe tip and acoustic signal localization of cable breaks and interruptions in insulated and live lines, e.g. in cable reels and in chains of lights voltage range: 200 V - 1000 V AC the flashing frequency of the LED probe tip as well as the frequency of the acoustic signal increase with the voltage applied increasing as well capacitive measuring method requires no current flow highest measuring category CAT IV 600 V ON/OFF push-button with stand-by LED for phase test and phase sequence test (TRITEST® easy) battery compartment can be opened easily via robust screw cap automatic switch-off (AUTO Power-OFF) break-proof ABS housing easy phase sequence testing (L1-L2-L3) in three-phase mains by means of green LED probe tip (lights up) = clockwise phase sequence red LED probe tip (lights up) = counter-clockwise phase sequence testing with regard to phase balance: green LED probe tip (flashing) = same phase ON/OFF push-button with stand-by LED for phase test and phase sequence test very reliable phase testing at various shock-proof sockets and CEE sockets (incl. 63 A in case of activating the high sensitivity)
