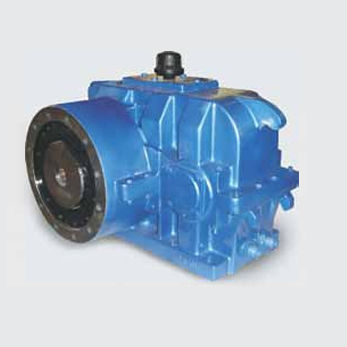

Bevel gear reducer SBH

helical gearcoaxialfor single-screw extruder

ELECON Make Extruder Gear Units are the result of extensive in?house Research and Development. The Gearboxes are designed to satisfy requirement and conditions encountered in extrusion process. High torque is required for pressurizing and plasticizing moulding material hence the gear units are designed accordingly. Spherical roller thrust bearing is used on the output line to absorb high axial thrust. The units are available in Right hand shaft disposition. ELECON Extruder Gear Units are equipped with as enlarged Spherical thrust bearing mounted forward to the housing. This smart design separates external loads from the torque? transmitting portion of the housing. We incorporated the latest generation of bearings that literally redefines the design limits of spherical roller bearings. According to their functions; these assemblies are designed independently of each other. Production Range: • SBH Series consists of sizes from 110 to 315; having Ratio 6.3 to 22.4 ; covered in this catalogue. All ratios are reducing and defined as the ratio of Input Speed to Output Speed. Double Reduction ratios are exact within ±3%. • Axial self aligning roller bearings of 293….E and 294….E Series. • Hollow output shafts are normally made with single key way; howeverdouble key way or splined bores can also be provided against specific requirement. • Keys and Keyways on shafts as per DIN6885. • Units may be operated in either direction of rotation
