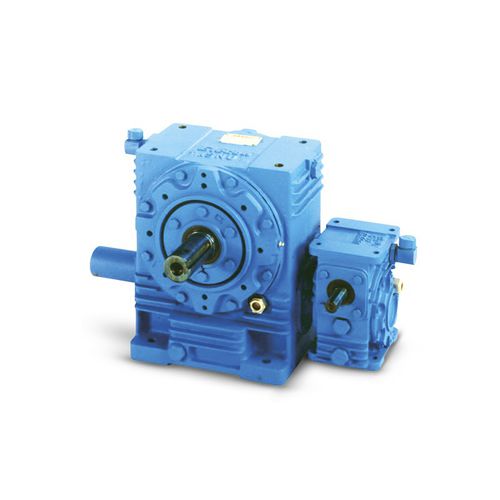

Worm gearbox

right anglesolid-shaftcompact

ELECON Double Reduction Worm Gear Units are constructed using two single reduction worm gear units. The primary worm gear unit is specially designed to mount integrally on a standard single worm gear unit which forms the secondary stage. The complete gear unit becomes compact and rigid in arrangement for slow moving machinery. A wide range of ratio from 75:1 to 4900:1 is available. These gear units are particularly suitable for high torque slow-speed drives. Worm gearing conforms to BS-721. Explanation and use of ratings and service factors. Gear unit selection is made by comparing actual loads with catalogue ratings. Catalogue ratings are based on a standard set of loading conditions whereas actual load conditions vary according to type of application. Service factors are therefore used to calculate an equivalent load to compare with catalogue ratings. Mechanical ratings and service factor (F ) M Mechanical ratings measure capacity in terms of life and/or strength assuming 12 hr/day continuous running under uniform load conditions. Catalogue ratings allow 100% overload at starting, breaking or momentarily during operations up to 12 hours per day.
