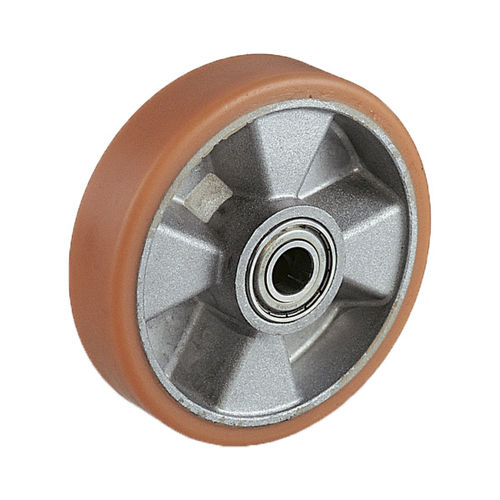

Monobloc wheel RH002polyurethanefor heavy loadsfor trolleys
Add to favorites
Compare this product
Characteristics
- Type
- monobloc
- Hub material
- polyurethane
- Applications
- for heavy loads, for trolleys, for carts
- Diameter
Max.: 200 mm
(7.87 in)Min.: 80 mm
(3.15 in)- Tread width
25 mm, 30 mm, 40 mm, 50 mm
(0.98 in, 1.18 in, 1.57 in, 1.97 in)
Description
MATERIAL - SURFACE TREATMENT
Wheel:PU ring (Polyurethane) 94 ShA (±2) orange
AL core (Aluminium)
HUB
WORKING SPEED
4 Km/h max
OPERATING TEMPERATURE
-25°C ÷ 60°C
USE
Manual cart for heavy loads; good resistance to wear,
impacts, grease, and petroleum products, but keep away
from contact with saturated steam, acid, strong bases,
ketonic and chlorinated solvents.
NOTES
Wheel diameter 100 corrugated core.
ACCESSORIES
Mounting accessories are not included but are available
upon request.
