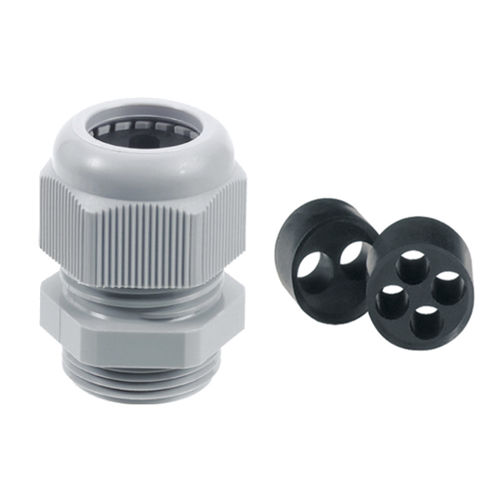

Polyamide cable gland JCR17IP65self-extinguishingmetric
Add to favorites
Compare this product
Characteristics
- Material
- polyamide
- Protection level
- IP65, self-extinguishing
- Other characteristics
- metric, multi-passage
- Cable diameter
Max.: 60 mm
(2.36 in)Min.: 19 mm
(0.75 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description
Perfect cable gland multi-hole, metric thread
• Material
Body: PA6 (Polyamide)
Sealing ring: TPE (Thermoplastic elastomer)
Gasket: CR (Chloroprene)
• Colour
Grey RAL 7035
Grey RAL 7001
Black RAL 9005
• Protection grade: IP65
• Self-Extinguishing: UL 94 V-2
• Operating temperature: -20°C ÷ 100°C
• Accessories: Multi-hole sealing rings
