- Polyamide cable gland
- Berardi Bullonerie srl
Polyamide cable gland JCR18nitrile butadiene rubber (NBR)IP65self-extinguishing
Add to favorites
Compare this product
Characteristics
- Material
- polyamide, nitrile butadiene rubber (NBR)
- Protection level
- IP65, self-extinguishing
- Other characteristics
- threaded, multi-passage
- Cable diameter
Min.: 3.5 mm
(0.14 in)Max.: 25 mm
(0.98 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 100 °C
(212 °F)
Description

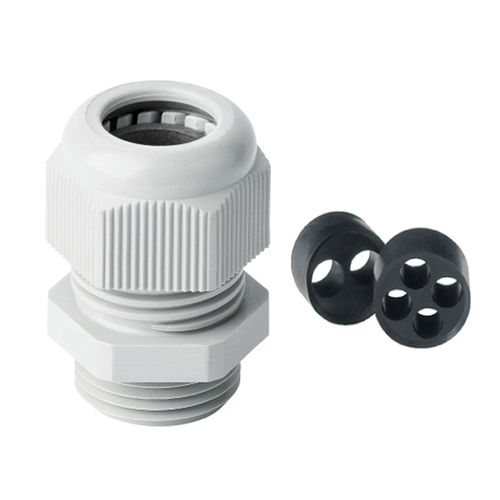

Perfect cable gland multi-hole, PG thread
• Material
Body: PA6 (Polyamide)
Sealing ring: TPE (Thermoplastic elastomer)
O-Ring: NBR (Nitrile rubber)
• Colour
Grey RAL 7035
Grey RAL 7001
Black RAL 9005
• Protection grade: IP65
• Self-Extinguishing: UL 94 V-2
• Operating temperature: -20°C ÷ 100°C
• Accessories: Multi-hole sealing rings.
