Pressure-compensated valve JCT13
diaphragmmanualthreaded

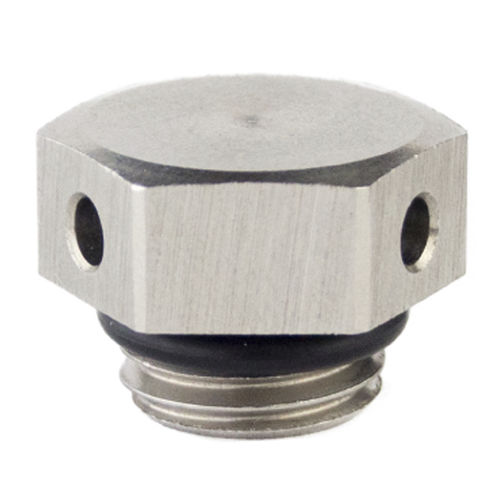

Pressure-compensated valve - JCT13 - Berardi Bullonerie srl - diaphragm / manual / threaded
Pressure-compensated valve - JCT13 - Berardi Bullonerie srl - diaphragm / manual / threaded
Pressure-compensated valve - JCT13 - Berardi Bullonerie srl - diaphragm / manual / threaded - image - 2
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
manual
Body
threaded, IP68, stainless steel
Applications
for HVAC installations
Other characteristics
pressure-compensated
Pressure

0.1 bar
(1.5 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -40 °C
(-40 °F)

Description

Pressure check valve, metric thread stainless steel • Material Body: AISI303 (Stainless steel) Diaphragm: PES (Polyethersulfone) O-ring: NBR (Nitrile rubber) • Protection grade: IP66 IP68 - 0,6 bar (60 min) IP69 • Air passage: > 400 ml / min / cm2 a ∆p = 0,07 bar • Water passage: ≥ 0,83 bar (30 sec) • Operating temperature: -40°C ÷ 100°C • Use: Protection for electro­-technical and electronic enclosures against condensation due to temperature and pressure variations. Ventilation and continuous adaptation to the internal pressure.The venting element does not work if blocked by dust or submerged in water.
